Replacement RZR Turbo

Replace and upgrade your stock RZR Turbo. With a lighter Turbine, your boost will spool up faster, eliminating more of a turbos worst nightmare. We also offer tunes that optimize the turbos performance along with other hardware changes like an exhaust.

• Stock XPT Replacement
• Bolt-on OEM replacement for 2016-2021 Polaris RZR XP and TURBO S, no modifications required to fit;
• 17.83% lighter turbine vs OEM
• less turbo lag compared to stock because of lighter turbine
• custom CNC milled turbine
• Longer Turbo life with billet wheel as intake temps are cooler with a more efficient design
• 6+6 Billet compressor wheel
• 11+0 Turbine wheel Inconel 713c
• 360° Thrust bearing system
• Actuator: 3.8-4.0 psi.
• Polaris Part Number 1205689 , 3023297

• Stock PRO XP Replacement (XPT Upgrade)
• Bolt-on oem replacement for 2020 Pro XP or Turbo R, no modifications required to fit;
• lighter turbine vs OEM
• less turbo lag compared to stock because of lighter turbine
• custom CNC milled turbine
• Longer Turbo life with billet wheel as intake temps are cooler with a more efficient design
• Stock Turbo specs  39/40 inducer/exducer
  Cast compressor wheel (heavier) ours is a billet wheel
• 6+6 Billet compressor wheel
• 360° Thrust bearing system
• Stock turbo hits CFM ceiling at ~20psi above this point the turbo will just create boost by increasing the temperature.
• This turbo can be adapted to XP turbos with water cooling kit.

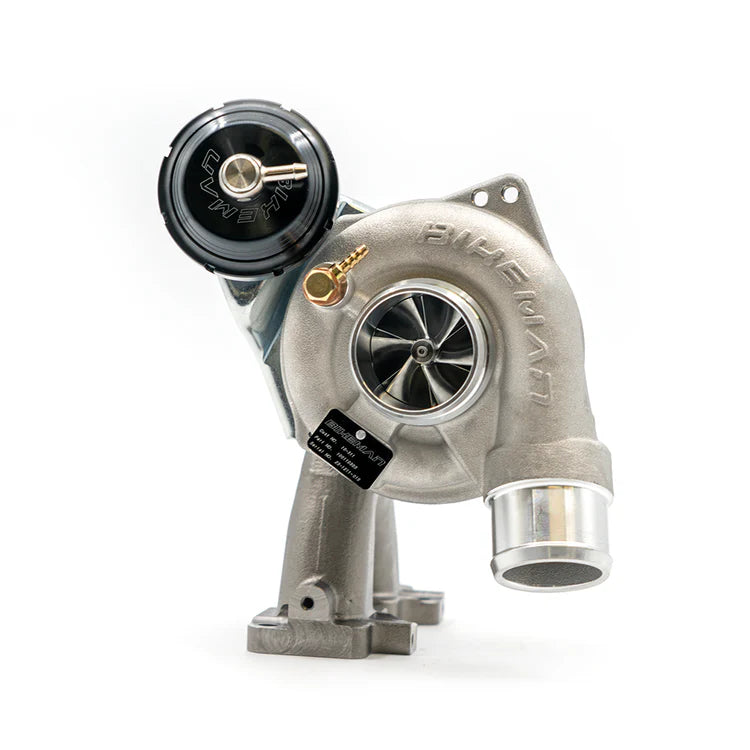

• MEGA MO
• Bolt On Big Mo Turbo capable of 30+psi while staying within the CFM ceiling.
• +12.5% Larger Exhaust Turbine
• +18% Larger Compressor
• Billet compressor wheel (lighter)
• Pro XP Big Mo Turbo specs 46/45 inducer/exducer
• Bolt-on Big Turbo for 20+ Polaris RZR PRO XP and TURBO R.
• Less turbo lag compared to stock with lighter turbine
• Longer Turbo life with billet wheel as intake temps are cooler with a more efficient design
• 360° Thrust bearing system
• This turbo is in the middle of the efficiency window, which keeps boost temps much cooler than stock

• REQUIRED MODS!!

  -ECU Tune

  -2" Silicone J Intake Tube

  -Water cooled kit if using this turbo for a XP turbo model
